RIDGED BALL JOINTS PREVENT EARLY FAILURE.

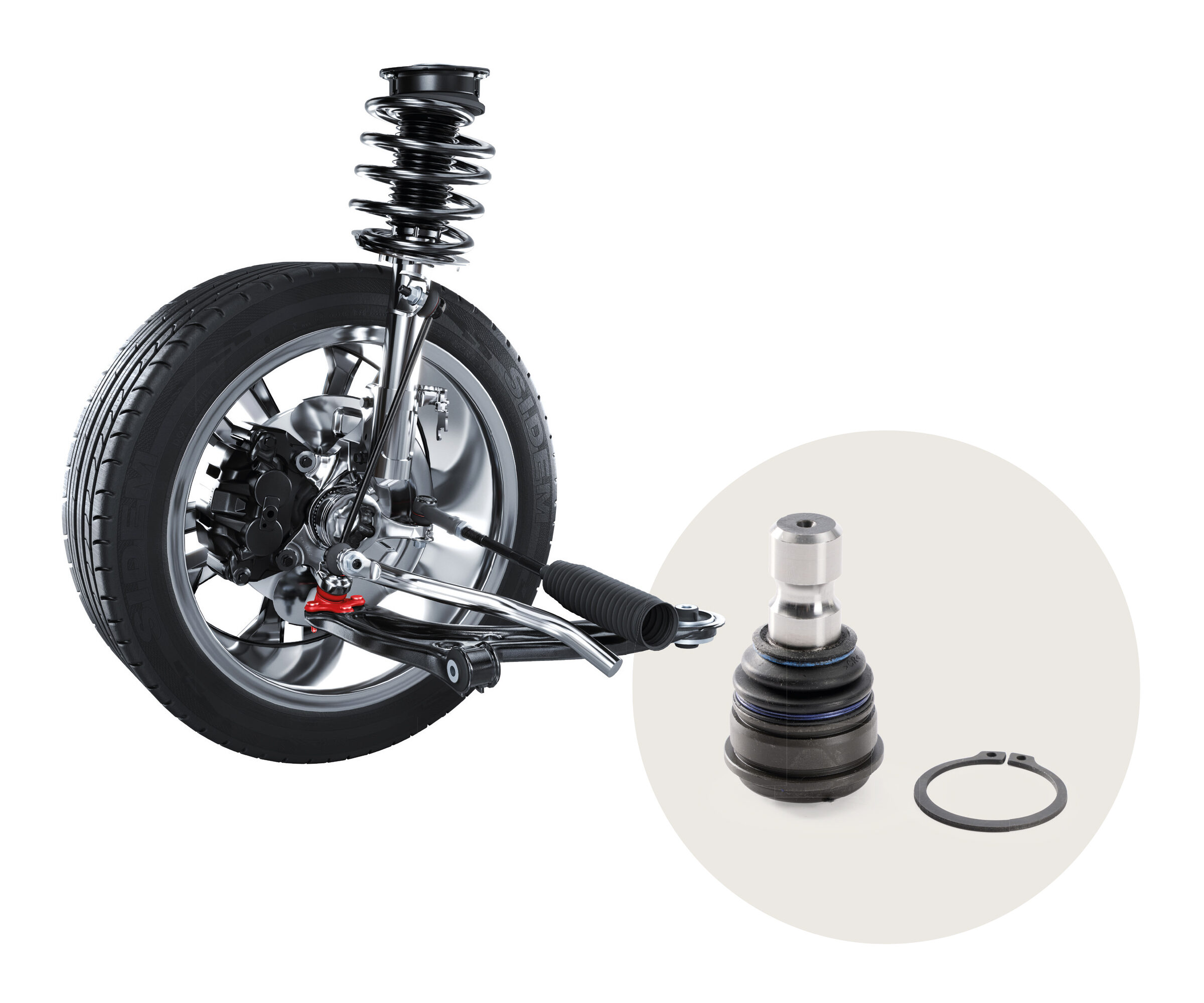

Ball joints connect the track control arm with the steering knuckle, allowing both steering and suspension movements. As they constantly move, they are naturally subject to wear. However, a well designed ball joint will take you sufficiently further!
PROBLEM: PREMATURELY BALL JOINT FAILURE.
Water is one of the main enemies of a ball joint. Once it makes its way inside the joint, corrosion will wear it down rapidly. This is why quality dustcovers on ball joints, along with the correct sealing pressure of the dustcover rings, are vital for its lifetime.
In the OE-design of several ball joints with cylindrical ball pin we’ve noticed early wear of the dustcover. This is caused by the friction of the dustcover against the open steering knuckle. The edge of the steering knuckle scraping against the top of the dustcover, wearing it down rapidly and destroying the sealing for water. As a result, the ball joint starts to corrode and wears out.
SIDEM’S SOLUTION: THE RIDGED BALL JOINT.

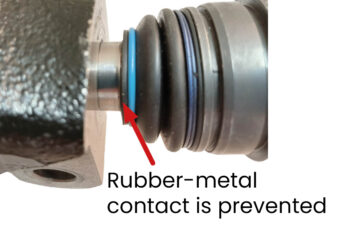

Sidem’s Quality and R&D department joined forces to redesign these ball joints. The solution was found in adding a metal ridge just above the top of the dust cover. This ridge prevents contact between the top of the dustcover and the steering knuckle. Without this contact, the dustcover is secured to perform without friction and risk of failure.

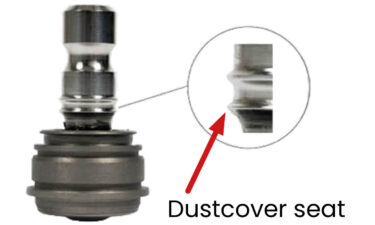

Additionally, as frequently applied with Sidem ball joints, a dustcover seat is applied to prevent the dustcover from collapsing during mounting.
SUMMARY.
By reengineering multiple ball joints with cylindrical ball pin, Sidem seriously improves the lifetime of your ball joint.
APPLICATION: WHICH PART WAS IMPROVED?
| MODEL | SIDEM REFERENCE |
| Nissan Murano (Z50)08/2003 – 06/2008
Nissan Qashqai (J10E) 02/2007 – 12/2013 Nissan Qashqai (J10) 02/2007 – 12/2013 Nissan Qashqai+2 (JJ10E) 10/2008 – 12/2013 Nissan Qashqai II (JJ11_) 11/2013 – present Nissan Teana I (J31) 10/2003 – 06/2008 Nissan X-trail (T31) 03/2007 – 07/2014 Nissan X-trial (T32) 04/2014 – present Renault Koleos I (HY) 09/2008 – 03/2015 Renault Koleos II (HC_) 08/2016 – present Renault Kadjar 06/2015 – 07/2022 |
Ridged ball joints 41283 R |
| Jeep Compass (MK49) 08/2006 – 10/2016
Jeep Patriot (MK74) 02/2007 – 12/2017 |
Ridged ball joints 93181 R |
| Ford B-Max (CB2) 10/2012 – present
Ford Ecosport (CBW-CR6) 08/2012 – present Ford Fiesta VI (CB1-CCN) 10/2008 – 12/2019 Ford Ka+ (CDU) 06/2016 – present Ford Tourneo Courier (C4A) 02/2014 – present Ford Transit Courier (C4A) 02/2014 – present Mazda 2 (DE) 10/2007 – 06/2015 Mazda 2 Hatchback (DJ) 11/2014 – present Mazda 2 Sedan (DL) 01/2015 – present |
Ridged ball joints 3787 R |
| Mazda 3 (BM, BN) 09/2013 – 12/2019
Mazda 3 (BP) 11/2018 – present Mazda CX-3 (DK) 01/2015 – present Mazda CX-30 (DM) 07/2019 – present Mazda CX-5 (KE, GH) 11/2011 – 02/2017 Mazda CX-5 (KF) 11/2016 – present Mazda 6 (GJ, GL) 12/2012 – present |
Ridged ball joints 51282 R |
| Nissan Qashqai (J10) 02/2007 – 12/2013
Nissan Qashqai+2 (JJ10E) 10/2008 – 12/2013 Nissan X-trail (T31) 03/2007 – 07/2014 Renault Koleos I (HY) 09/2008 – 03/2015 |
Track control arms with Ridged ball joints 41178 R (left) 41179 R (right) |
| Nissan X-trial (T32) 04/2014 – present
Renault Koleos II (HC_) 08/2016 – present |
Track control arms with Ridged ball joints 41670 R (left) 41671 R (right) |
| Nissan Qashqai II (JJ11_) 11/2013 – present
Renault Kadjar 06/2015 – 07/2022 |
Track control arms with Ridged ball joints 41672 R (left) 41673 R (right) |
| Jeep Compass (MK49) 08/2006 – 10/2016 Jeep Patriot (MK74) 02/2007 – 12/2017 |
Track control arms with Ridged ball joints 93176 R (left) 93177 R (right) |
| Ford B-Max (CB2) 10/2012 – present
Ford Tourneo Courier (C4A) 02/2014 – present Ford Transit Courier (C4A) 02/2014 – present |
Track control arms with Ridged ball joints 3874 R (left) 3875 R (right) |
| Ford Fiesta VI (CB1-CCN) 10/2008 – 12/2019
Ford Ka+ (CDU) 06/2016 – present |
Track control arms with Ridged ball joints 3476 R (left) 3477 R (right) |
| Mazda 2 (DE) 10/2007 – 06/2015 | Track control arms with Ridged ball joints 51078 R (left) 51079 R (right) |
| Mazda 2 Hatchback (DJ) 11/2014 – present | Track control arms with Ridged ball joints 51770 R (left) 51771 R (right) |
|
Mazda 2 Sedan (DL) 01/2015 – present |
Track control arms with Ridged ball joints 51772 R (left) 51773 R (right) |
| Mazda CX-5 (KE, GH) 11/2011 – 02/2017 | Track control arms with Ridged ball joints 51576 R (left) 51577 R (right) |
|
Mazda CX-5 (KF) 11/2016 – present |
Track control arms with Ridged ball joints 51876 R (left) 51877 R (right) |
|
Mazda 6 Saloon – Estate (GJ, GL) 12/2012 – present |
Track control arms with Ridged ball joints 51672 R (left) 51673 R (right) |
